Beyond Speed: How High-Speed Gears Are Revolutionizing Modern Machinery

I. Introduction

The relentless pursuit of efficiency and performance in modern machinery has pushed the boundaries of engineering design. From the roar of a jet engine to the hum of a power plant turbine, the ability to transmit power reliably and efficiently at ever-increasing rotational speeds is paramount. This demand has placed high-speed transmission gears at the forefront of mechanical innovation. These are not merely gears that spin fast; they are meticulously engineered components designed to operate effectively and reliably under extreme conditions, where conventional gear designs would quickly fail.

High-speed transmission gears are critical enablers of technological advancement. They facilitate higher power density, allowing more power to be transmitted through smaller, lighter components. This directly translates to improved efficiency across various industries, including aerospace, power generation, and high-performance automotive sectors. By reducing the overall size and weight of machinery, these gears contribute to more compact, fuel-efficient, and agile systems. This article will delve into the fundamental principles, intricate design considerations, advanced manufacturing techniques, diverse applications, and exciting future trends shaping the world of high-speed transmission gears.

II. Fundamentals of Gear Transmission

A. Basic Gear Principles

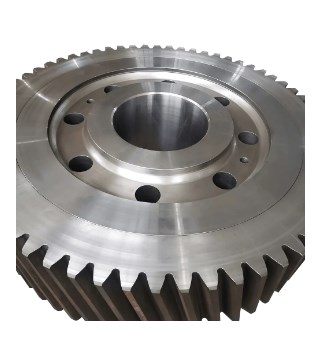

At their core, gears are mechanical components with teeth that mesh to transmit rotary motion and torque from one shaft to another. Understanding basic gear terminology is crucial: the pitch circle is the theoretical circle upon which mating gears roll without slipping; the module defines the size of the gear teeth; the pressure angle dictates the angle at which force is transmitted between meshing teeth; and the helix angle (for helical gears) refers to the angle of the teeth relative to the gear's axis. While various gear types exist, helical gears are predominantly used in high-speed applications due to their smoother, quieter operation and higher load-carrying capacity compared to spur gears. The gear ratio determines the speed reduction or increase, while the torque transmission capability defines the amount of rotational force that can be transferred.

B. Challenges at High Speeds

Operating gears at high rotational speeds introduces a unique set of formidable challenges:

1. Increased Dynamic Loads and Vibrations: As speeds increase, even minor imperfections or misalignments can lead to significant dynamic forces, causing excessive vibrations and noise.
2. Heat Generation and Thermal Management: Friction between meshing teeth and oil churning within the gearbox generate substantial heat. Effective thermal management is crucial to prevent material degradation and lubricant breakdown.
3. Noise Reduction: High-speed operation inherently produces more noise. Designing for quiet operation is essential, especially in applications like aerospace.
4. Lubrication Challenges: Maintaining an adequate lubricant film between rapidly moving teeth becomes difficult. Issues like oil churning (where the oil itself generates resistance and heat) and ensuring sufficient film thickness to prevent metal-to-metal contact are critical.
5. Material Fatigue and Wear: The cyclical stresses at high frequencies significantly increase the risk of material fatigue. Surface wear, pitting, and scuffing are also major concerns.
6. Manufacturing Precision Requirements: The tolerances for high-speed gears are exceptionally tight. Any deviation can lead to catastrophic failure.

III. Design Considerations for High-Speed Gears

Overcoming the challenges of high-speed operation requires meticulous design and engineering.

A. Gear Geometry Optimization

Optimizing gear geometry is paramount for smooth, efficient, and durable high-speed operation:

• Profile Modification: Techniques like tip relief and root relief are applied to the tooth profile to ensure smoother engagement and disengagement, reducing impact loads and noise.
• Lead Modification: For helical gears, slight modifications to the helix angle along the tooth length can compensate for deflections under load, ensuring uniform contact.
• Helix Angle Selection: An optimal helix angle for helical gears balances load distribution, axial thrust, and noise characteristics.
• Pressure Angle Optimization: The pressure angle influences tooth strength, contact stresses, and noise. Careful selection is vital.
• Tooth Contact Analysis (TCA): Advanced software simulations are used to analyze the contact patterns between meshing teeth, ensuring uniform load distribution across the tooth flank and preventing localized stress concentrations.

B. Material Selection

The choice of material is fundamental to a high-speed gear's performance and longevity:

• High-Strength Steels: Specialized steels such as carburizing steels (e.g., AISI 9310, 8620) and nitriding steels are commonly used due to their excellent core strength and ability to achieve high surface hardness.
• Surface Hardening Techniques: Processes like carburizing (introducing carbon into the surface for hardness), nitriding (introducing nitrogen for surface hardness and wear resistance), and induction hardening (localized heating and quenching) create a hard, wear-resistant case while maintaining a tough, ductile core.
• Lightweight Materials: For applications where weight is critical, such as aerospace, advanced alloys or even composites are being explored, though they present their own manufacturing and performance challenges.
• Considerations: Key material properties for high-speed gears include high fatigue strength (resistance to cyclic loading), superior wear resistance, adequate toughness (resistance to fracture), and thermal stability (maintaining properties at elevated temperatures).

C. Lubrication Systems

Effective lubrication is the lifeblood of high-speed gears, managing friction, heat, and wear:

• Oil Mist Lubrication: A fine mist of oil is directed at the gear mesh, suitable for lighter loads and lower speeds within the high-speed range.
• Jet Lubrication: High-pressure jets of oil are precisely aimed at the meshing teeth, ensuring direct and effective lubrication and cooling. This is common in demanding applications.
• Oil Spray Lubrication: Similar to jet lubrication but with a broader spray pattern.
• Lubricant Selection: The choice of lubricant is critical, considering its viscosity (resistance to flow), the presence of specific additives (e.g., anti-wear, extreme pressure), and its thermal properties (stability at high temperatures).
• Filtration and Cooling Systems: Integrated systems are essential to remove contaminants from the oil and dissipate heat, maintaining optimal lubricant performance.

D. Bearing Selection

Bearings support the rotating shafts and must withstand high speeds and loads:

• Hydrodynamic Bearings: These bearings rely on a pressurized oil film to separate the shaft from the bearing surface, offering excellent load capacity and damping at high speeds.
• Rolling Element Bearings: High-precision, high-speed types (e.g., angular contact ball bearings, cylindrical roller bearings) are used, often with ceramic balls for reduced friction and higher speed capability.
• Active Magnetic Bearings: For extreme speeds, zero-contact, and precise shaft positioning, active magnetic bearings are employed, using electromagnetic forces to levitate and control the shaft.

E. Housing and System Rigidity

The gear housing and overall system must be designed for maximum rigidity to prevent misalignment and control vibrations:

• Minimizing Deflection and Misalignment: Stiff housing designs and precise machining ensure that shafts and gears remain accurately aligned under operating loads.
• Vibration Damping and Isolation: Materials and structural designs that absorb or isolate vibrations are incorporated to reduce noise and prevent resonance.
• Thermal Expansion Management: As components heat up, they expand. The design must account for differential thermal expansion between gears, shafts, and housing to maintain clearances and alignment.

IV. Manufacturing and Quality Control

The performance of high-speed gears hinges on ultra-high precision manufacturing and stringent quality control.

A. Precision Machining

Achieving the required accuracy involves advanced machining processes:

• Gear Hobbing and Shaping: Initial roughing and semi-finishing of gear teeth.
• Gear Grinding: A critical finishing process that removes small amounts of material to achieve precise tooth profiles and surface finishes. This includes form grinding (using a grinding wheel shaped to the tooth profile) and generative grinding (where the grinding wheel simulates a mating gear).
• Superfinishing Processes: Techniques like honing and lapping are used to achieve extremely smooth surface finishes, reducing friction and improving contact patterns.

B. Heat Treatment Processes

After machining, heat treatments are applied to enhance material properties:

• Carburizing: A thermochemical process that diffuses carbon into the surface of steel, followed by quenching and tempering, to create a hard, wear-resistant case.
• Nitriding: A lower-temperature process that diffuses nitrogen into the steel surface, forming hard nitrides that enhance surface hardness, wear resistance, and fatigue strength with minimal distortion.
• Induction Hardening: Uses electromagnetic induction to rapidly heat and quench specific areas of the gear, allowing for localized hardening.

C. Quality Control and Inspection

Rigorous inspection ensures that every gear meets the demanding specifications:

• Gear Metrology: Advanced instruments like Coordinate Measuring Machines (CMM) and dedicated gear rolling testers are used to precisely measure tooth geometry, lead, profile, and runout.
• Non-Destructive Testing (NDT): Techniques such as magnetic particle inspection (to detect surface cracks) and ultrasonic testing (to detect internal flaws) are employed to ensure material integrity without damaging the component.
• Balancing of Rotating Components: High-speed gears and their associated shafts must be dynamically balanced to minimize vibrations and ensure smooth operation.

V. Applications of High-Speed Transmission Gears

High-speed transmission gears are indispensable across a wide array of industries where performance and efficiency are paramount.

A. Aerospace

The aerospace industry is a prime example of where high-speed gears are critical:

• Aircraft Engines: In turbofan and turboprop engines, gearboxes are essential for connecting the high-speed turbine to the slower-speed fan or propeller, optimizing efficiency.
• Helicopter Transmissions: These complex gearboxes transmit power from the engine to the main and tail rotors, requiring exceptional reliability and power density.
• Auxiliary Power Units (APUs): Small gas turbine engines on aircraft that provide power for starting and ground operations also utilize high-speed gearing.

B. Power Generation

In the energy sector, these gears are vital for converting high-speed rotational energy:

• Gas Turbines: High-speed gearboxes connect gas turbines to generators, stepping down the turbine's high rotational speed to the synchronous speed required by the electrical grid.
• Steam Turbines: Similar to gas turbines, gearboxes are used to match the turbine's speed to the generator.
• Wind Turbine Gearboxes: While the main rotor operates at lower speeds, some stages within the gearbox of large wind turbines can involve high-speed gearing.

C. Automotive

High-performance and emerging automotive applications increasingly rely on these gears:

• High-Performance Vehicles: In racing cars and supercars, specialized gearboxes are designed to handle extreme engine speeds and power outputs.
• Electric Vehicle (EV) Drivetrains: As electric motors often operate at very high RPMs for optimal efficiency, high-speed reduction gears are crucial for matching motor speed to wheel speed.

D. Industrial Machinery

Numerous industrial applications benefit from the efficiency and power density of high-speed gears:

• Compressors: Used in various industries (e.g., oil and gas, HVAC) to drive high-speed centrifugal compressors.
• Pumps: High-speed gears can drive specialized pumps for fluid transfer in industrial processes.
• Machine Tools: Precision machine tools often incorporate high-speed spindle gearboxes for high-speed machining operations.
• Test Rigs: In research and development, high-speed gearboxes are fundamental components of test rigs designed to simulate real-world operating conditions for various machinery.

VI. Future Trends and Innovations

The field of high-speed transmission gears is continuously evolving, driven by the demand for even greater performance, efficiency, and reliability.

A. Advanced Materials

Research into new materials promises to push the boundaries further:

• Ceramic Gears: Offering exceptional hardness, wear resistance, and high-temperature capability, ceramic gears are being explored for extreme applications where traditional steels fall short.
• Advanced Composites: Lightweight and high-strength composites could revolutionize gear design, particularly for weight-sensitive applications.
• Additive Manufacturing (3D Printing): This technology enables the creation of complex gear geometries that are impossible with traditional machining, potentially allowing for optimized internal structures and integrated features.

B. Smart Gears/Condition Monitoring

The integration of intelligence into gear systems is a significant trend:

• Integrated Sensors: Embedding sensors directly into gears or gearboxes to monitor parameters like temperature, vibration, and strain in real-time.
• Predictive Maintenance and AI-Driven Diagnostics: Data from these sensors, combined with artificial intelligence and machine learning, can predict potential failures before they occur, enabling proactive maintenance and minimizing downtime.

C. Noise and Vibration Reduction Technologies

Ongoing efforts aim to make high-speed gears quieter and smoother:

• Active Noise Control: Using anti-phase sound waves to cancel out gear noise.
• Advanced Damping Materials: Developing new materials and structural designs that more effectively absorb and dissipate vibrations.

D. Hybrid and Electric Drivetrains

The shift towards electrification is influencing gear design:

• Optimization for Electric Motor Characteristics: Gears are being specifically designed to interface with the unique speed-torque characteristics of electric motors, often requiring higher input speeds and different reduction ratios.
• Integration with Power Electronics: Closer integration between mechanical gear systems and electronic control units for optimized performance and efficiency.

VII. Conclusion

High-speed transmission gears represent a pinnacle of mechanical engineering, embodying precision, material science, and advanced manufacturing. They are critical components that enable the high power density, efficiency, and performance demanded by modern machinery across diverse industries. From mitigating dynamic loads and managing thermal challenges to selecting advanced materials and employing ultra-precise manufacturing techniques, every aspect of their design and production is a testament to engineering excellence.

As industries continue to push the limits of speed and efficiency, the role of high-speed gears will only grow. With ongoing innovations in materials, the integration of smart technologies for condition monitoring, and adaptations for the evolving landscape of hybrid and electric drivetrains, the field of high-speed transmission gears is poised for continued evolution, driving the next generation of high-performance machinery.
