Cylinder Block Casting: The solid foundation of the "heart" of the engine

In an internal combustion engine, the cylinder block is the core structure that carries the entire power system and is known as the "heart shell of the engine". Cylinder Block Casting, as one of its most original and critical components, is not only related to the performance, reliability and life of the whole machine, but also directly determines the manufacturing cost and the feasibility of subsequent processing.

1. What is Cylinder Block Casting?

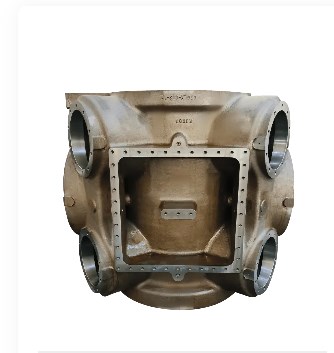

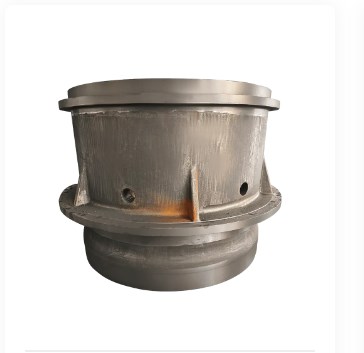

Cylinder Block Casting refers to the unprocessed cylinder block blank manufactured by the casting process, which is one of the most important structural components of the internal combustion engine. Its main function is to support moving parts such as pistons, crankshafts, and connecting rods, bear the impact of high-temperature and high-pressure gases generated by combustion, and maintain the overall rigidity of the engine. Due to extremely harsh working conditions, the strength, thermal stability, wear resistance, and processability of cylinder block castings are extremely high.

2. Analysis of mainstream materials: the battle between gray cast iron, ductile iron and aluminum alloy
There are three main types of material selection for cylinder block castings:

Gray cast iron (HT250, HT300, etc.): traditional materials, low cost, excellent casting performance, good shock absorption and processing performance, still dominant in medium and low speed diesel engines and some gasoline engines.

Ductile iron: higher strength, better tensile strength and impact toughness than gray cast iron, suitable for high-load, high-performance engines.

Aluminum alloy (such as Al-Si alloy): representative of lightweight trend, with excellent thermal conductivity and processing properties, is the preferred material for modern passenger car gasoline engines.

As the automobile industry develops towards energy conservation, emission reduction and lightweight, aluminum alloy cylinder blocks are gradually replacing traditional cast iron, but in the field of heavy-duty diesel engines, gray cast iron still has irreplaceable advantages.

3. Mainstream process route of Cylinder Block Casting
The manufacturing process requirements of Cylinder Block Casting are extremely high, which must not only meet the molding of complex structures, but also control dimensional accuracy and organizational uniformity. The main process flow is as follows:

1. Molding and core box design
Molding materials such as resin sand, clay sand or water glass sand are used, combined with a multi-parting surface structure to ensure the precision molding of complex structures such as the inner cavity and cooling water jacket. The water jacket and oil channel parts usually require precise positioning with hollow sand cores.

2. Melting and pouring
The composition of metals must be strictly controlled during smelting, especially the content of elements such as C, Si, Mn, S, and P. The pouring temperature is generally controlled between 1300 and 1400℃ to avoid casting defects such as cold shut and shrinkage.

3. Heat treatment and organizational regulation
Some high-performance cylinder castings require normalizing, annealing or aging treatment to improve organizational properties, heat crack resistance and processing stability.

4. Cleaning and inspection
Including grinding burrs, sandblasting to remove oxide scale, flaw detection (such as X-ray, ultrasonic), size detection, etc., to ensure the quality pass rate of castings.

4. Structural optimization design: the art of balancing strength and lightness
Excellent cylinder block castings must not only be "cast", but also "well used". The following points need to be taken into account in structural design:

Reasonable layout of cylinder liner and water jacket: ensure cooling efficiency and wall thickness uniformity.

Arrangement of rib plate: enhance seismic performance and reduce resonance.

Integrated design of oil channel/water channel: improve space utilization and ease of processing.

Precision design of flange and mounting hole position: ensure sealing and matching with cylinder head, crankcase and other components.

With the help of CAD/CAE software modeling and analysis, more and more manufacturers have achieved the transformation from "experience design" to "data-driven".

Cylinder block castings shoulder the basic mission of the power core. Whether it is material innovation, process optimization, or intelligent upgrading, the high-end manufacturing capabilities behind it are an important indicator of a country's equipment industry level. In the future, with the in-depth promotion of green manufacturing and digital transformation, cylinder block castings will also play an irreplaceable role at a higher level.
