Gearbox Housing: The Solid Guardian of the Industrial Transmission Core

In the industrial transmission sector, gearboxes are key devices for power transmission and speed change. Their performance directly impacts the efficiency and stability of the entire equipment. The gearbox housing, acting as its "framework" and "protective shell," plays a crucial role, ensuring the proper operation of the gearbox and the entire transmission system.

Functional Positioning of the Gearbox Housing
The gearbox housing is the core structural component of the gearbox and performs multiple critical functions. It provides precise mounting and positioning space for core transmission components such as gears, bearings, and shafts, ensuring that these components maintain correct relative positioning during operation, a prerequisite for smooth transmission. The housing provides a seal and protection, effectively blocking dust, moisture, and other impurities from entering the housing, preventing them from causing wear or corrosion on precision transmission components. It also prevents lubricant leakage, maintaining a well-lubricated environment within the gearbox. The housing also provides a certain degree of heat dissipation, dissipating heat generated during gear transmission to prevent excessive temperatures from affecting the performance and lifespan of the gearbox.

Gearbox Housing Material Selection
The choice of material is crucial to meeting gearbox housing requirements in terms of strength, rigidity, wear resistance, and cost. Cast iron is one of the most widely used housing materials. Like gray cast iron, it offers excellent casting properties, making it easy to process into complex housing shapes. It also provides good vibration damping, effectively reducing vibration and noise generated during gear transmission. Ductile iron offers superior strength and toughness, making it suitable for gearboxes with high load-bearing capacity requirements.

With the advancement of industrial technology, some high-end or specialized applications are also using cast steel for gearbox housings. Cast steel offers superior strength and toughness compared to cast iron, allowing it to withstand greater loads and impacts. However, the casting process is relatively complex and the cost is higher.

Some lightweight gearboxes also use aluminum alloy. Aluminum alloy has a low density, effectively reducing the overall weight of the gearbox. It also has good thermal conductivity, facilitating heat dissipation. However, its relatively low strength makes it suitable for transmissions with smaller loads.

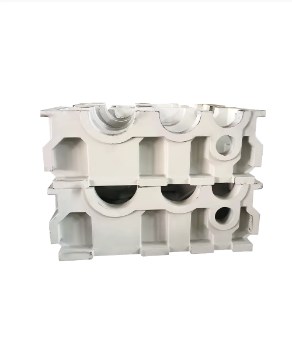

Key Points in Gearbox Housing Structural Design
The structural design of a gearbox housing requires comprehensive consideration of multiple factors to ensure performance and reliability. First and foremost, housing rigidity must be designed. Sufficient rigidity prevents excessive deformation under load, preventing the gears and bearings from being disturbed in their proper working positions, thereby ensuring transmission accuracy. Rigidity is typically enhanced through appropriate wall thickness, ribs, and other structural features.

Second, the housing's processability must be designed to facilitate casting, cutting, and subsequent assembly. For example, the housing design should prioritize machining surfaces to minimize machining difficulty and fixture complexity. Appropriate assembly datums and positioning structures should be established to ensure accurate assembly of all components.

The housing's lubrication and sealing design also requires careful consideration. Appropriate lubrication channels must be designed to ensure smooth delivery of lubricant to all surfaces requiring lubrication. Furthermore, the sealing structure must be reliable to prevent leakage and the intrusion of foreign matter. Common sealing methods include labyrinth seals and oil seals, and the choice should be based on the gearbox's operating environment and requirements.

Gearbox Housing Manufacturing Process
Gearbox housing manufacturing typically involves a series of process steps, including casting, heat treatment, and machining. Casting is the primary step in housing manufacturing. Depending on the material, sand casting, lost foam casting, and other methods can be used. During the casting process, strict control of process parameters, such as casting temperature and cooling rate, is crucial to preventing defects such as shrinkage cavities and cracks in the housing.

After casting, the housing is typically heat treated, such as annealing and normalizing, to eliminate casting stresses and improve its mechanical properties.

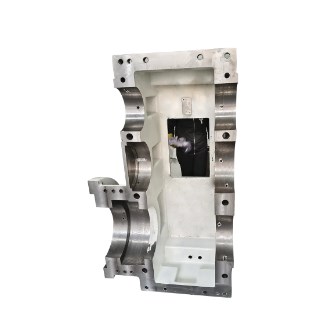

The subsequent machining process, including milling, boring, and drilling, is crucial for ensuring housing precision. These processes ensure that the flatness of all mounting surfaces, as well as the dimensional and positional accuracy of each hole system, meet design requirements. High-precision machining equipment and measuring instruments are essential for rigorous quality control.

As a key component in industrial transmission systems, the performance and quality of the gearbox housing directly impact the operation of the entire system. With the continuous advancement of industrial technology, gearbox housings are constantly developing and improving in terms of materials, structural design, manufacturing processes, etc. to adapt to the growing needs of different fields and provide a more solid guarantee for the efficient and stable operation of industrial transmission.
