High-Speed ​​Transmission Gears: The Core Power Driving the Future of Industry

In the grand symphony of modern industry, every rotation of a gear carries the precise transmission of power and efficiency. In fields where speed and performance are paramount, a key component stands out: the high-speed transmission gear. More than just a mechanical part, it is the core engine driving the high-speed operation of future industry, a culmination of the art of mechanical design and precision manufacturing technology.

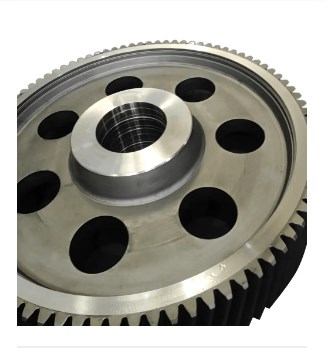

What are high-speed transmission gears?

High-speed transmission gears are specifically designed to stably and efficiently transmit power under high speeds, high torques, and high power densities. Compared to ordinary gears, their operating conditions are more demanding, requiring higher standards for precision, balance, strength, and wear resistance. These gears are commonly used in aerospace, high-speed trains, wind power generation, gas turbines, and advanced industrial robots. Their performance directly determines the efficiency, reliability, and lifespan of the entire system.

The design of high-speed transmission gears requires comprehensive consideration of multiple factors. The choice of tooth profile is crucial. The involute tooth profile is widely used for its excellent meshing characteristics and ease of manufacturing. However, in high-speed applications, to reduce impact and noise, tooth profile modifications, such as addendum rounding and root chamfering, are often required to optimize meshing. The design of the helix angle is also crucial. A suitable helix angle can effectively reduce axial forces while improving load capacity and smooth operation.

In addition to the tooth profile, gear geometric parameters such as module, number of teeth, and tooth width must also be carefully calculated. A smaller module can reduce gear size but reduce load capacity; a larger tooth width can increase load capacity but increase weight and manufacturing cost. Therefore, designers need to find an optimal balance between performance, size, and cost.

Materials and Heat Treatment Processes for High-Speed ​​Gears
Materials are the cornerstone of high-speed transmission gear performance. Under extremely high speeds and loads, gear materials must possess excellent comprehensive properties, including high strength, high toughness, high wear resistance, and good fatigue resistance. Commonly used materials include alloy steels such as 20CrMnTi and 20CrNiMo. By adding alloying elements such as chromium, nickel, and molybdenum, these steels can significantly improve their hardenability and mechanical properties.

Simply selecting high-quality materials is not enough; heat treatment is the key step in giving the material its "soul." Carburizing and quenching is a common heat treatment method used in high-speed gear manufacturing. Carburizing imparts extremely high hardness and wear resistance to the gear surface while maintaining excellent toughness within the interior, creating an ideal "hard exterior, tough interior" structure. This allows the gear to withstand significant impact loads while also resisting wear. In addition to carburizing, surface strengthening techniques such as nitriding and carbonitriding are also commonly used on high-speed gears to further enhance their surface hardness and corrosion resistance.

Controlling deformation after heat treatment is a major challenge in high-speed gear manufacturing. Due to thermal stress and phase transformation stress, gears will experience slight deformation during the heat treatment process, which can affect their precision. Therefore, modern heat treatment workshops typically utilize advanced technologies such as vacuum heat treatment and controlled atmosphere heat treatment, combined with precise fixtures and process parameter control, to minimize deformation and ensure the final geometric accuracy of the gears.

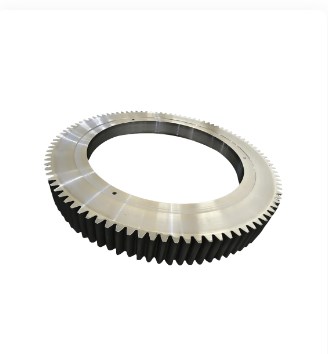

High-Speed ​​Gear Manufacturing and Precision Control
The manufacturing process of high-speed transmission gears is an ultimate pursuit of precision. From forging the blank to final finishing, every step requires strict quality control. First and foremost, tooth profile machining is a core step, typically employing methods such as hobbing and shaping. To achieve high precision, finishing operations such as shaving and grinding are typically performed after rough machining.

Gear grinding is an indispensable finishing process in high-speed gear manufacturing. High-precision grinding machines can precisely correct tooth profiles, eliminate minor distortion after heat treatment, and achieve an extremely high surface finish. Advances in gear grinding technology, particularly worm and profile grinding, have enabled unprecedented levels of gear manufacturing precision.

In addition to tooth profile accuracy, dynamic balance of gears is also crucial. At high speeds, even minor mass imbalances can generate significant vibration, leading to noise, increased wear, and even system failure. Therefore, after manufacturing, all high-speed gears undergo dynamic balancing tests and appropriate weight removal or counterweighting to ensure smooth operation at high speeds.

Applications and Future Trends of High-Speed ​​Gears
The application areas of high-speed transmission gears are constantly expanding, playing an increasingly important role in driving industrial upgrades and technological advancement. In the aerospace industry, they are key components in aircraft engines and helicopter transmission systems, directly impacting aircraft performance and safety. In wind power generation, gearboxes are the crucial link connecting turbine blades to generators. The efficiency and reliability of high-speed gears determine the wind farm's power generation and operating costs. In the transmission systems of high-speed trains, high-speed gears ensure smooth operation and precise control at extremely high speeds.

High-speed transmission gears are the essence of modern industry, representing the highest level of mechanical manufacturing. With every high-speed operation, they silently drive the progress of human society. With continuous technological innovation, we have reason to believe that high-speed transmission gears will continue to play a vital role in the future industrial landscape, ushering in a new era of more efficient and intelligent industry.
