High speed transmission gear: How does precision manufacturing drive industrial efficiency to new heights?

In many fields such as modern industrial manufacturing, automotive transmission systems, aerospace and high-speed trains, high speed transmission gear is increasingly becoming one of the core components. With the increasing requirements for transmission efficiency, power density and system reliability, the research and development and application of high-speed gear systems have entered a new height.

What is high speed transmission gear? What are the core advantages?

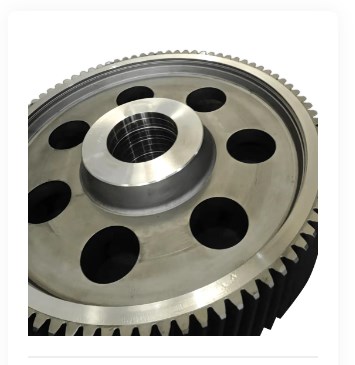

High speed transmission gear refers to a gear system that can transmit power and torque at extremely high speeds (usually 10000rpm or even higher). Its structural design, material properties and manufacturing precision far exceed those of ordinary gears, and it is widely used in high-performance mechanical equipment such as turbomachinery, high-speed machine tool spindles, and aircraft engine gearboxes.

Its main advantages include:

Strong high speed load capacity: sustainable operation under extremely high speed conditions.

High transmission efficiency: precise meshing, low mechanical loss, and energy efficiency ratio of more than 98%.

Strong reliability and long life: using advanced materials and heat treatment processes, excellent fatigue resistance.

Low noise and low vibration: By optimizing the tooth shape and structural design, the operating noise and mechanical impact can be effectively reduced.

Material selection: the cornerstone of high-speed gear performance

The working environment of high-speed gears is complex, usually accompanied by high temperature, high pressure and high-speed friction, so extremely high requirements are placed on materials.

Common materials include:
Alloy steel (such as 18CrNiMo7-6, 20CrMnTi): has good hardenability and wear resistance.

Powder metallurgy steel: uniform structure and high density, suitable for small and complex gear manufacturing.

High-strength titanium alloy and nickel-based alloy (used in the aviation field): have excellent thermal stability and strength.

Heat treatment process:
Carburizing and quenching: improve surface hardness and enhance fatigue resistance.

Nitriding treatment: suitable for scenes with high precision and low deformation requirements.

Surface strengthening treatment (such as rolling and laser quenching): further improve contact strength and wear resistance.

Precision machining technology: a key step in determining gear performance
The accuracy of high-speed transmission gear is directly related to the running quality and stability of the whole machine, so the machining process is particularly critical.

Core machining technologies include:
CNC gear hobbing/gear shaping: used to form high-precision tooth profiles, suitable for mass production.

Tooth surface grinding (tooth surface modification): can achieve DIN level 5 or above accuracy requirements, significantly improving meshing quality.

Five-axis linkage machining: used for complex non-standard gear structures to ensure precision and repeatability.

Laser modification technology: used to quickly compensate for tooth profile errors caused by high-speed operation.

Application scenario panorama: Which industries cannot do without high-speed gears?

Aerospace system
High-speed gears are an important component of aircraft engine speed increasers and helicopter main reducers, and have extremely high requirements for weight, thermal stability and noise control.

New energy vehicle powertrain
In electric drive axles and high-speed motor systems, high-speed gears not only affect vehicle acceleration performance, but also directly determine the NVH performance of the entire vehicle.

Industrial spindles and CNC equipment
Such as the spindle transmission system of the machining center, which requires high speed, high rigidity and long life, high-speed gears provide an ideal solution.

Wind power speed increaser
It is used to increase the low speed of the wind wheel to the high speed required by the generator, and has extremely high requirements for fatigue resistance.

Under the wave of industrial high-speed and intelligentization, high-speed transmission gear is no longer just a "part", but the "core of the system" that determines the performance, energy efficiency, safety and life of the whole machine. In the future, whoever can master the manufacturing and application capabilities of more efficient, more precise and more intelligent high-speed gears will be able to gain more initiative in the field of high-end equipment manufacturing. For related companies, this is not only a technical challenge, but also a golden opportunity for industrial upgrading.
